UT40EFB Full Based 2 Post Car Lift

UT40EFB Full Based 2 Post Car Lift

Write a Review
Minimum Purchase:
1 unit
Shipping:
£185.00 (Fixed Shipping Cost)
Price: £2,624.00 - £2,734.00
Subject to VAT & Delivery.

Click here to
Personalise your Quote

Lease Period:

How Long have you been trading?

More Info
Call us now Call us now Call: 0151 346 2920
  • 32 Grade hydraulic oil for 2 post lift

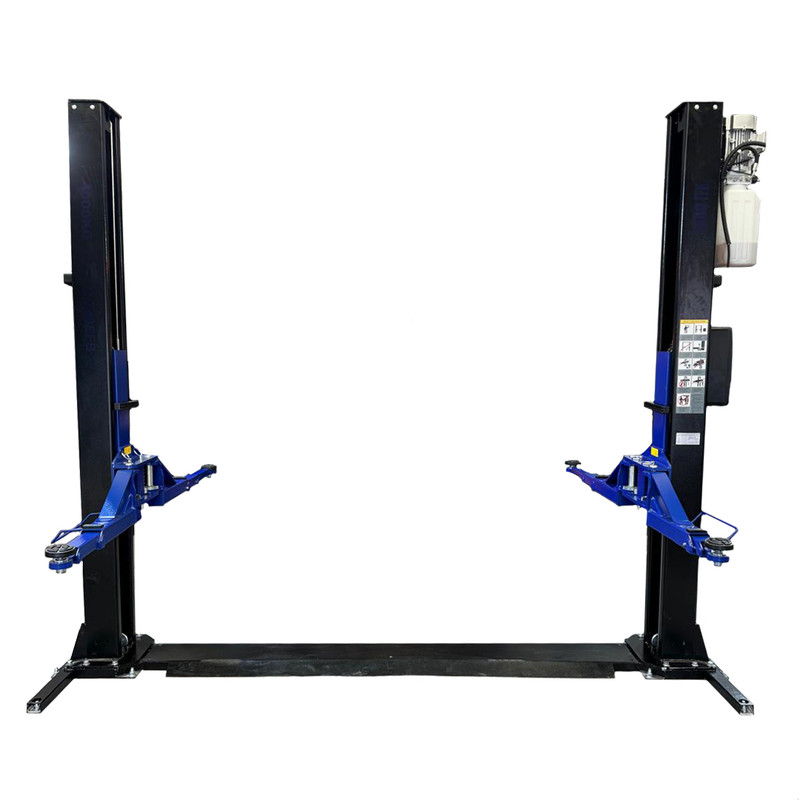

U-T40EFB Automatic 2 post car lift Now With 3-Stage Arms

This Eurotek U-T40EFB post car lift is designed with a H-Frame floor mount plate made from high tensile steel for the purpose of added strength and stability when lifting a car on your 2-post vehicle lift. Often installations will be refused because you do not have the required depth or strength of concrete required to hold a 2-post car lift and vehicle to the floor. So, for that reason the UT40EFB 2 post lift has the H-frame to support the inward pull force of the 2 posts and vehicle. This 4 ton full based 2 post ramp has been built with affordable quality in mind, unlike some of our competitors this 2 post lift has double height screw pads as standard which adjust from a low 110mm in 2 stages all the way up to 150mm which covers all variant heights of floor pans and if that's not enough we also include a set of four 60mm height pad extensions ideal for avoiding the side steps on 4x4's and a set of four 90mm extensions for lifting van's and avoiding sill damage. Although this ramp can lift some van's it is not specifically designed for long wheel-based vans. As an alternative to this 4 tonne 2 post lift we can offer a 2 post van lift with a huge 5 tonne lifting capacity and longer reach 3-stage arms specifically designed for long wheel based vans, take a look at the Eurotek UT50E 5 Tonne 2 Post Car Lift.

For added safety the Eurotek UT40EFB Full Based Lift comes complete with a fully electronic safety release system so the locks are always engaged when you are working under the lift.

Eurotek lifts are tested and certified to UKCA & CE standards bearing the recognised UKCA & CE mark and are supplied with a 12 month parts only warranty for your piece of mind.

The Eurotek UT40EFB Top Features:

  • H – Frame, Concrete support base Unit
  • 4-ton lifting capacity
  • Twin Hydraulic Cylinders for powerful lifting
  • Fan Assisted Finned Motor with 2.2 KW Power
  • Available in 240V or 415V without effecting the performance.
  • Lifting Speed of less than 45s
  • Double height screw pads adjustable from 90 mm - 150 mm on 3-Stage Arms
  • 60 mm & 90 mm screw pad extensions for added pad height.
  • Automatic safety release system
  • Automatic arm locking system.



UT40EFB Specifications:

  • LIFTING CAPACITY - 4000KG
  • MAXIMUM LIFTING HEIGHT - 1910MM
  • INITIAL PAD HEIGHT - 110MM
  • APROXIMATE LIFTING TIME - <45 SECONDS.
  • APPROXIMATE DECENT TIME - <45 SECONDS
  • POWER REQUIRMENT - 240V/415V
  • OVERALL HEIGHT - 2850MM
  • OVERAL WIDTH - 3420MM
  • INTERNAL WIDTH - 2616MM
  • MOTOR POWER - 2.2KW
  • WHOLE MACHINE WEIGHT - 616KG
All equipment supplied by Autotrade Solutions LTD T/A Garage Equipment Group will be supplied with a 12-month parts only warranty as standard. Labour warranty is not included and is the responsibility of the customer in all cases. Should a diagnosis be provided by our technical support team then you will be required to complete a warranty claim form via our online portal or emailed PDF document. Should a substantial spare part be required, and the customer has returned a warranty claim form an invoice will be issued for the required part. On return of the defective part we shall check the defective part for inappropriate use and if deemed inappropriate use of the equipment or incorrect installation then the invoice will stand as payable by the customer. If the customer is not able or willing to replace the required parts, we may offer the customer a repair service at our warehouse. It is the responsibility of the customer to provide payment for the collection and delivery service and any labour charges we may apply. If a product you purchased develops a fault that we are not able to repair here at our warehouse, we may offer an exchange or refund as appropriate and at the Managing Directors discretion. Wear & Tear Items are not covered under our warranty terms. Examples of this would be items made of rubber or plastic that wear or break with use. Any parts that are used to control or operate equipment will also fall under this catagory ie pedals, buttons and keypads. To comply with these conditions all equipment must be serviced on a 6-monthly basis as required by LOLER & PUWER. Proof of the service history must be provided if requested by us. Failure to comply with these terms and conditions may result in your warranty being null and void. Your legal rights are not affected. Please contact the Customer Service department for further assistance.
Product Description



U-T40EFB Automatic 2 post car lift Now With 3-Stage Arms

This Eurotek U-T40EFB post car lift is designed with a H-Frame floor mount plate made from high tensile steel for the purpose of added strength and stability when lifting a car on your 2-post vehicle lift. Often installations will be refused because you do not have the required depth or strength of concrete required to hold a 2-post car lift and vehicle to the floor. So, for that reason the UT40EFB 2 post lift has the H-frame to support the inward pull force of the 2 posts and vehicle. This 4 ton full based 2 post ramp has been built with affordable quality in mind, unlike some of our competitors this 2 post lift has double height screw pads as standard which adjust from a low 110mm in 2 stages all the way up to 150mm which covers all variant heights of floor pans and if that's not enough we also include a set of four 60mm height pad extensions ideal for avoiding the side steps on 4x4's and a set of four 90mm extensions for lifting van's and avoiding sill damage. Although this ramp can lift some van's it is not specifically designed for long wheel-based vans. As an alternative to this 4 tonne 2 post lift we can offer a 2 post van lift with a huge 5 tonne lifting capacity and longer reach 3-stage arms specifically designed for long wheel based vans, take a look at the Eurotek UT50E 5 Tonne 2 Post Car Lift.

For added safety the Eurotek UT40EFB Full Based Lift comes complete with a fully electronic safety release system so the locks are always engaged when you are working under the lift.

Eurotek lifts are tested and certified to UKCA & CE standards bearing the recognised UKCA & CE mark and are supplied with a 12 month parts only warranty for your piece of mind.

The Eurotek UT40EFB Top Features:

  • H – Frame, Concrete support base Unit
  • 4-ton lifting capacity
  • Twin Hydraulic Cylinders for powerful lifting
  • Fan Assisted Finned Motor with 2.2 KW Power
  • Available in 240V or 415V without effecting the performance.
  • Lifting Speed of less than 45s
  • Double height screw pads adjustable from 90 mm - 150 mm on 3-Stage Arms
  • 60 mm & 90 mm screw pad extensions for added pad height.
  • Automatic safety release system
  • Automatic arm locking system.



UT40EFB Specifications:

  • LIFTING CAPACITY - 4000KG
  • MAXIMUM LIFTING HEIGHT - 1910MM
  • INITIAL PAD HEIGHT - 110MM
  • APROXIMATE LIFTING TIME - <45 SECONDS.
  • APPROXIMATE DECENT TIME - <45 SECONDS
  • POWER REQUIRMENT - 240V/415V
  • OVERALL HEIGHT - 2850MM
  • OVERAL WIDTH - 3420MM
  • INTERNAL WIDTH - 2616MM
  • MOTOR POWER - 2.2KW
  • WHOLE MACHINE WEIGHT - 616KG
Warranty Information
All equipment supplied by Autotrade Solutions LTD T/A Garage Equipment Group will be supplied with a 12-month parts only warranty as standard. Labour warranty is not included and is the responsibility of the customer in all cases. Should a diagnosis be provided by our technical support team then you will be required to complete a warranty claim form via our online portal or emailed PDF document. Should a substantial spare part be required, and the customer has returned a warranty claim form an invoice will be issued for the required part. On return of the defective part we shall check the defective part for inappropriate use and if deemed inappropriate use of the equipment or incorrect installation then the invoice will stand as payable by the customer. If the customer is not able or willing to replace the required parts, we may offer the customer a repair service at our warehouse. It is the responsibility of the customer to provide payment for the collection and delivery service and any labour charges we may apply. If a product you purchased develops a fault that we are not able to repair here at our warehouse, we may offer an exchange or refund as appropriate and at the Managing Directors discretion. Wear & Tear Items are not covered under our warranty terms. Examples of this would be items made of rubber or plastic that wear or break with use. Any parts that are used to control or operate equipment will also fall under this catagory ie pedals, buttons and keypads. To comply with these conditions all equipment must be serviced on a 6-monthly basis as required by LOLER & PUWER. Proof of the service history must be provided if requested by us. Failure to comply with these terms and conditions may result in your warranty being null and void. Your legal rights are not affected. Please contact the Customer Service department for further assistance.
